YUPSENI
PVC Foam Board Manufacturer
Lead-free PVC foam board at wholesale price
Strong production capacity with 10 tons/day to ensure timely delivery
Stable quality assured by a series of stringent tests
-
![Hospital Antibacterial Board]()
Add to Inquiry -
![PVC Foam Board For UV Printing]()
PVC Foam Board For UV Printing
Add to Inquiry -
![PVC Board for Cabinet]()
Add to Inquiry -
![Expanded PVC Foam Board]()
Add to Inquiry -
![PVC Laminated 5 mm Foam Board]()
Add to Inquiry -
![PVC Laminated Foam Board]()
Add to Inquiry -
![PVC Printed Signs]()
Add to Inquiry -
![UV Printed PVC Foam Board]()
Add to Inquiry -
![Outdoor UV Printed PVC Foam Board Sign]()
Outdoor UV Printed PVC Foam Board Sign
Add to Inquiry -
![PVC Cards Printing]()
Add to Inquiry -
![UV Printing Foam Board]()
Add to Inquiry -
![PVC Letter Sign For Advertising]()
PVC Letter Sign For Advertising
Add to Inquiry
PVC foam board is a new type of green environmentally friendly material that uses plastic instead of wood and steel, It has characteristics such as light weight, good toughness, flame retardant, acid and alkali resistance, waterproofing, thermal insulation, and sound insulation. The surface can be UV printed, covered with film, or made into various colors, It can be used for secondary processing such as sawing, nailing, drilling, and planning like wood.
PVC foam board can be widely used in professional screen printing, UV printing ,display boards, signs, letter carving and decorative boards, sound insulation boards, partition boards, water resistant kitchen cabinet.
PVC Foam Sheet Technical Data
| Property | Conditions (US Customary) |
Units - SI (US Customary) |
ASTM Method | Value (US Customary) | |
|---|---|---|---|---|---|
| 3MM | 10MM | ||||
|
products name Expanded PVC Foam Board |
|||||
| Density | - | g/cm³ (lb/ft³) | D-1505 | 0.65-0.7 (41-44) | 0.55-0.6 (34-37) |
| Water Absorption | 24 hr. @ 23°C | % | D-570 | 0.5 | 0.8 |
| Mechanical | |||||
| Tensile strength at yield | 10 mm/min (0.4 in./min) | MPa (psi) | D-638 | 16 (2300) | 11 (1600) |
| Elongation at break | 10 mm/min (0.4 in./min) | % | D-638 | 30 | 20 |
| Flexural Modulus | 1.3 mm/min (0.05 in./min) | MPa (psi) | D-790 | 900 (130,500) | 900 (130,500) |
| Flexural Strength at Yield | 1.3 mm/min (0.05 in./min) | MPa (psi) | D-790 | 28 (4,061) | 22 (3,190 ) |
| Notch Impact Strength Charpy | 23°C (73°F) | J/m (ft·lbf/in) | D-256 | 29 (0.54) | 17 (0.32) |
| Thermal | |||||
| Long Term Service Temperature | - | °C (°F) | -15 to 55 (14 to 131) | -15 to 55 (14 to 131) | |
| Heat Deflection Temperature | Load: 1.82 Mpa (264 psi) | °C (°F) | D-648 | 63 (145) | 63 (145) |
| Vicat Softening Temperature | Load: 1 kg (2.2 lb) | °C (°F) | D-1525 | 75 (167) | 75 (167) |
| Coefficient of Linear Thermal Expansion | - | 10⁻⁵/°C (10⁻⁵/°F) | D-696 | 6.7 (3.7) | 6.7 (3.7) |
| Thermal Conductivity | - | W/m°K (Btu-in./hr-ft²) | C-177 | 0.07 (0.49) | 0.07 (0.49) |
| Optical | |||||
| Whiteness Index | - | WI | D-792 | 101 | |
| Electrical | |||||
| Surface Resistance | Ketley | Ohm | D-257 | 5 x 10¹⁵ | |
| Volume Resistance | Ketley | Ohm-cm | D-257 | 2 x 10¹⁶ | |
Potential application in many areas
Advertising
Direct printing
Displays
Mounting
Exhibition stands
Lettering
POS/POP applications
Fabricatio
Lightweight and signs
Construction & Furniture
Interior and exterior decoration
Formwork
Shop fitting
Partition
Shelf
Protector case
Kitchen and bathroom cabinets
Bus flooring

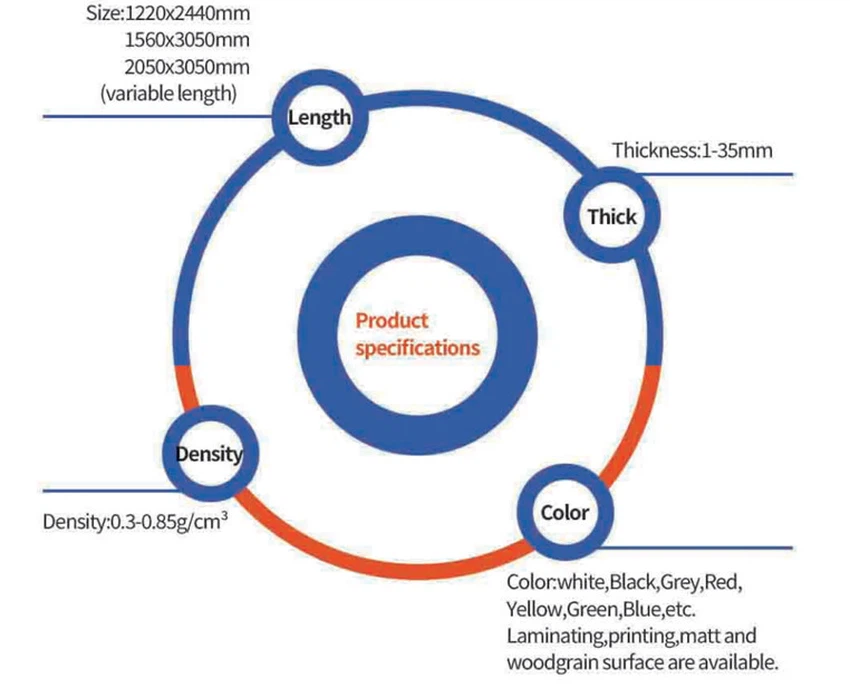

Product specification and workability

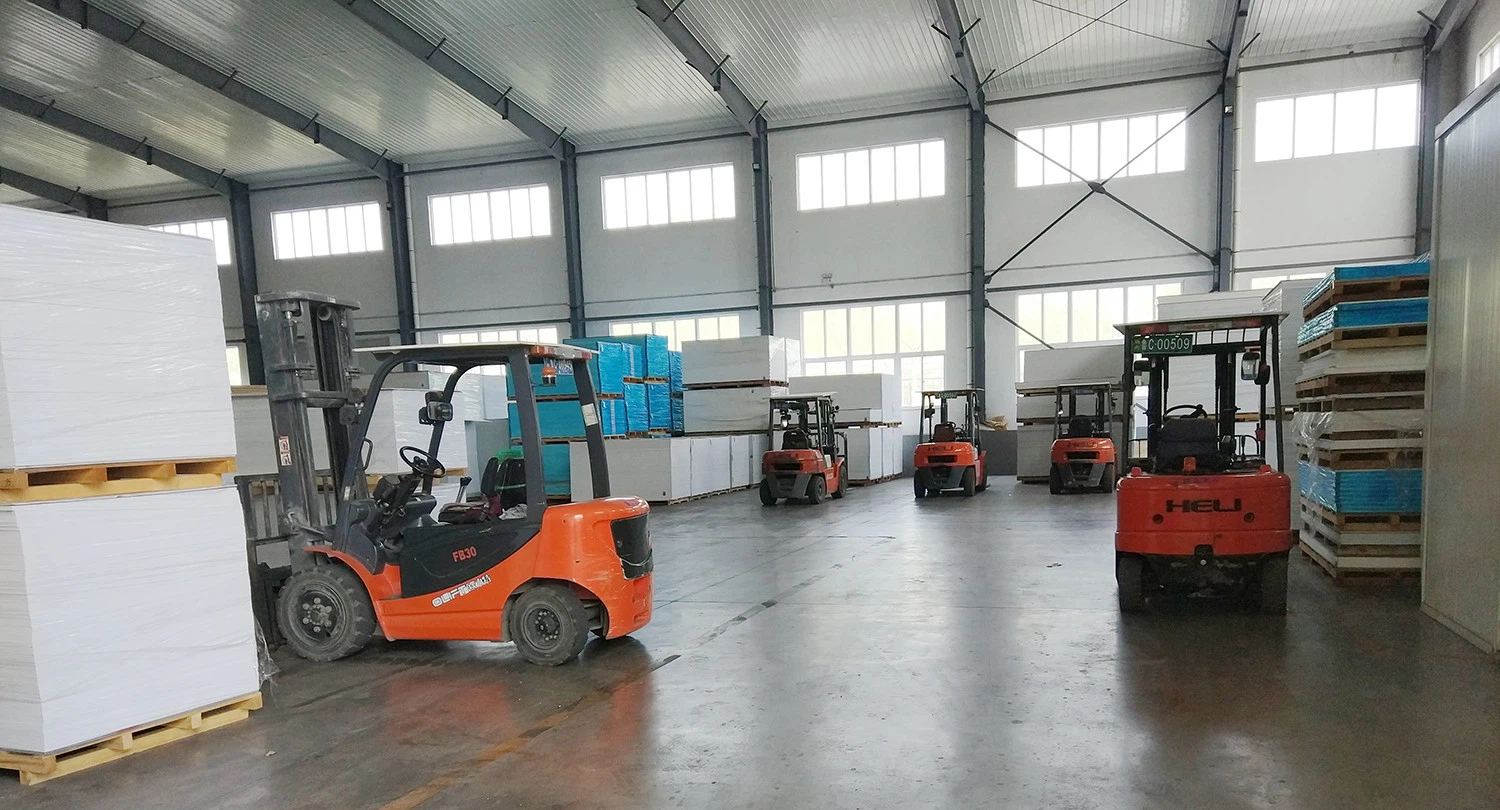

● Production areas and warehouses cover 1,200,000sf.ft
● More than 40 extrusion lines, to achieve shortest lead time
● Monthly output reaches 5000 Tons
● Top brand facilities Cincinnati Extruders to produce top quality products
● Raw material auto-mixing system ensure consistent quality
At present, we own 15 patents and 43 ofutility model patents.
All of our patents are self-developed, we reserve the intellectual property.
Our factory has the first-class laboratory equipment in China.

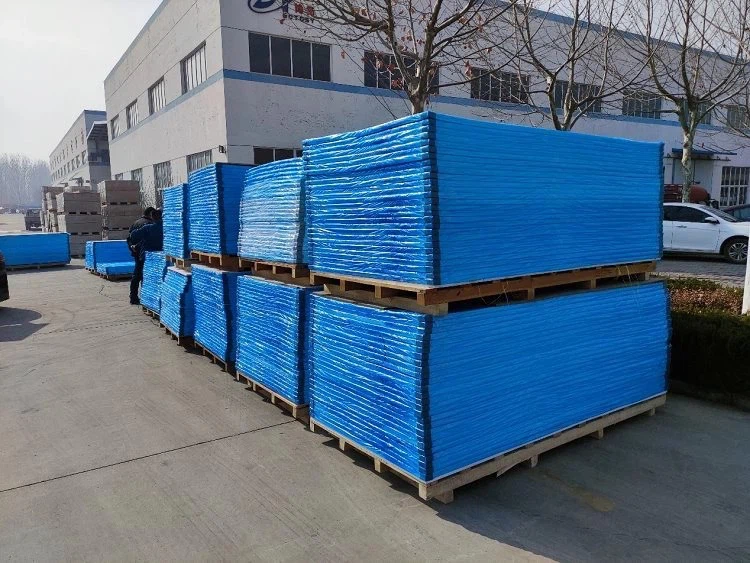

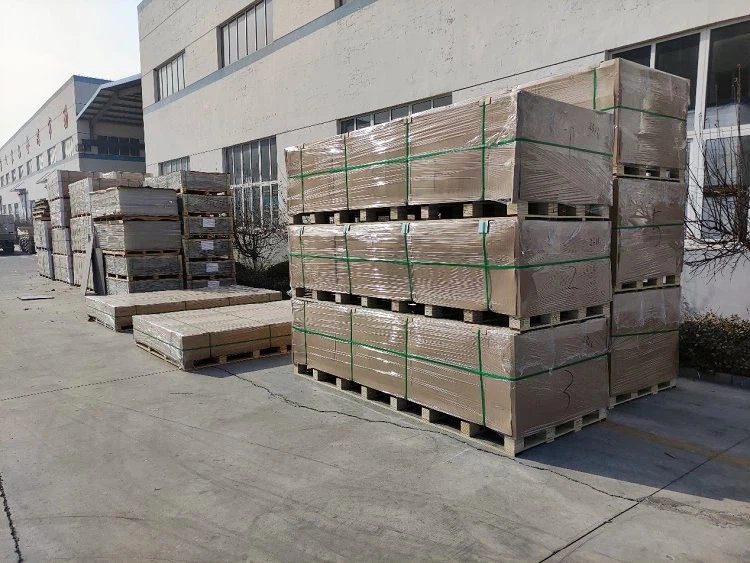

Our factory Package
FAQ
Q:We are a manufacturer of PVC foam boards in Shandong, China.
A:2. What is your best price?
Q:We will quote to you the best price according to your specifications.
A:3. How can we trust your quality?
Q:There are many ways to check, such as sending samples, visiting factory, etc.
Free samples will be sent to you for testing.
A:4. What is your delivery lead time?
Q:Generally, we can delivery the goods to you within7~30days, according to the
purchasing quantity after receiving your 30% prepayment.
A:5. How can I get the sample?
Q:If you need samples, we can make as per your request. The samples are
available for free, and you should pay for the transportation fee.
We're well-known as one of the leading PVC foam board manufacturers in China. If you're going to wholesale high quality PVC foam board with competitive price, welcome to get free sample from our factory. Also, customized service is available.
