White Vinyl Picket Fence Panel
White vinyl picket fence panel: 7/8"x3" pickets, 2"x3-1/2" rails, aluminum-reinforced bottom rail included. Available in 36, 48, 60, 72 in heights. 100% virgin vinyl, ASTM-certified, ISO 9001 factory. MOQ 1x40HQ.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

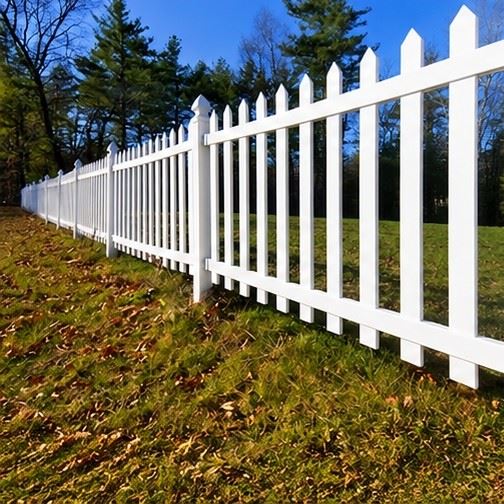

White Vinyl Picket Fence Panel
A straight-top vinyl picket fence panel built on 7/8" x 3" pickets and twin 2" x 3-1/2" hollow rails. The bottom rail ships with an aluminum insert already fitted-the difference between a rail that sags after two hot summers and one that holds its line for the life of the fence.
Fifteen pickets per 94" section, slotted into pre-routed rails, ready to set between standard 4x4 posts. Available in four heights and three picket cap styles. Assembly required; the kit arrives knocked down and goes together with no routing on site.
The bottom rail carries the panel's weight and takes the ground's reflected heat. Vinyl softens in high heat, and a hollow rail spanning 94 inches will sag over successive summers-slowly, then visibly. The aluminum insert converts that hollow channel into a structural beam.
Some suppliers sell the insert as an optional upgrade. In this panel it is standard, because a picket fence that sags at the bottom line has failed the one test a picket fence must pass: staying straight while everything around it heats, freezes, and settles.
Key Features
Aluminum-Reinforced Bottom Rail
Fitted insert inside the ribbed bottom rail stops mid-span sagging and keeps the panel's bottom line level across the full 94" width.
100% Virgin Vinyl
No recycled content, no filler shortcuts. Virgin resin holds colour and impact strength far longer than regrind blends under sustained UV.
Through-Color White
UV stabilisers and titanium dioxide compounded into the melt, not sprayed on. A scratch shows white on white, never a different substrate.
ASTM-Tested, ISO-Certified
Impact and dimensional testing to ASTM standards, manufactured under ISO 9001 with ISO 14001 and ISO 45001 accreditation.
Pre-Routed Assembly Kit
Pickets slide into routed rail channels. No routing on site, no special tooling, and no guesswork on picket spacing.
Four Heights, Three Cap Styles
36", 48", 60", or 72" heights with round, dog ear, or pointed picket caps to match the property's architecture.
Specifications
| Parameter | Specification |
|---|---|
| Fence Style | Picket fence - straight, good neighbor profile |
| Picket Size | 7/8" x 3" hollow vinyl, flat top - 15 pickets per panel |
| Top Rail | 2" x 3-1/2" x 94" hollow, pre-routed (1 pc) |
| Bottom Rail | 2" x 3-1/2" x 94" ribbed, pre-routed (1 pc) |
| Bottom Reinforcement | Aluminum insert - included |
| Available Heights | 36" / 48" / 60" / 72" |
| Standard Panel Width | 94" |
| Picket Cap Options | Round top (standard) · Dog ear (on request) · Pointed top (on request) |
| Material | 100% virgin vinyl, UV-stabilised |
| Color | White (through-color, not coated) |
| Assembly | Required - panel kit ships knocked down |
| Net Weight | 14.38 kg (29.72 lbs) per panel |
| Volume | 0.045 CBM per panel |
Panel Breakdown - 42" Reference
The most commonly ordered height is 42", detailed below at component level. Rail dimensions and the aluminum insert carry across all four heights; only the picket length changes.
| Component | Dimension | Qty | Material |
|---|---|---|---|
| Pickets | 7/8" x 3" x 40" | 15 pcs | Virgin vinyl, white |
| Top rail | 2" x 3-1/2" x 94" | 1 pc | Hollow vinyl, pre-routed |
| Bottom rail | 2" x 3-1/2" x 94" | 1 pc | Hollow vinyl, ribbed, pre-routed |
| Aluminum insert | Fitted inside bottom rail | 1 pc | Aluminum - included |
| Picket caps | Round top (standard) | 15 pcs | Virgin vinyl, white |
| Assembled panel | 42" H × 94" W | - | 14.38 kg net |
Posts & Gates
The panel system works with pre-routed 4x4 posts carrying the channels that receive the panel rails:
Line post
Straight runs, routes on two opposing faces.
Corner post
Two adjacent faces at 90°.
End post
One face, terminating the run.
3-way post
Three faces for T-intersections.
Coordinating gates come in the same profile and finish, sharing the rail dimensions and aluminum bottom reinforcement:
4-ft single gate
Pedestrian access.
5-ft single gate
Wider pedestrian opening.
10-ft double gate
Driveway openings.
Payment & Delivery
| Term | Detail |
|---|---|
| Business Type | Manufacturer & exporter - manufactured in our own PVC production base |
| Minimum Order Quantity | 1 × 40HQ container |
| Payment Terms | 30% advance, 70% against copy of B/L at sight |
| Payment Methods | T/T, L/C |
| Delivery Time | 10–25 days after 30% advance payment |
| Packing | Plastic PE bag or pallets, per panel |
| Price | Consultation - volume and destination dependent |
| Loading Reference | 0.045 CBM / 14.38 kg per panel - roughly 1,100 panels per 40HQ by volume |
Get a Quotation With a Container Load Plan
Tell us the panel height, cap style, post mix, and gate schedule. We return a per-panel price, a loading plan, and the document package your broker needs.
